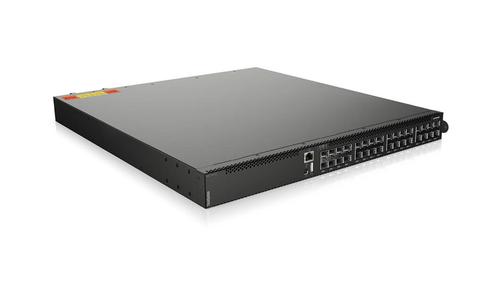

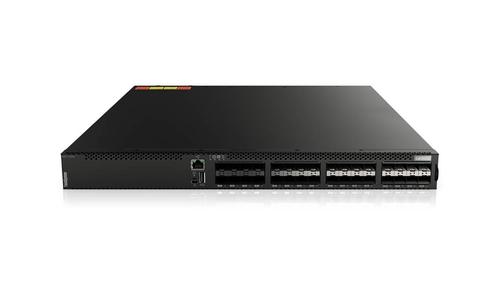

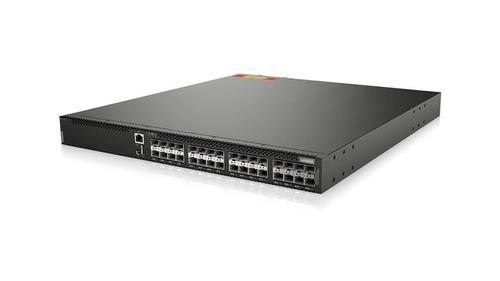

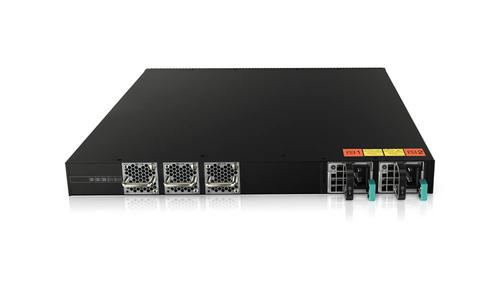

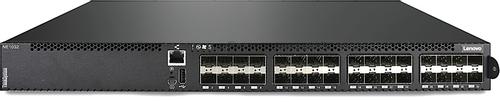

LENOVO ThinkSystem NE1032 RackSwitch (Front to Rear)
|
|
SKU: 7159A2X
LENOVO ThinkSystem NE1032 RackSwitch (Front to Rear)
-
Product
Ethernet
-
Poorten
1
-
Snelheid
10Gbps
-
Compatibility
7159-HD2 AU39
|
Beschrijving
Specificaties
| Switch-type | Administreret |
| Switch lag | L2/L3 |
| Servicekvalitet support (QoS) | Ja |
| Antal SFP + modulslots | 32 |
| Port til konsol | RJ-45/Mini-USB |
| Antal USB 2.0-porte | 1 |
| Strømstik | AC-in jack |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G understøttelse | Ja |
| Port-spejlning | Ja |
| Fuld duplex | Ja |
| Link aggregering | Ja |
| VLAN understøttelse | Ja |
| Vituelle LAN funktioner | Tagged VLAN |
| Antal VLAN'er | 4095 |
| MAC adresselabel | 208000 entries |
| Switch kapacitet | 10 Gbit/sek. |
| Gennnemløb | 640000 Mpps |
| Latens (10 Gps) | 0,76 µs |
| Statisk rute | Ja |
| Stastiske routere | 256 |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9216 |
| Pakke bufferlager | 12 MB |
| Adgangskontrolliste (ACL) | Ja |
| Adgangskontrolliste (ACL) egress | 512 |
| Adgangskontrolliste (ACL) ingress | 3072 |
| Sikkerhedsalgoritmer | 802.1x RADIUS, SNMP, SNMPv3, SSH |
| Multicast-understøttelse | Ja |
| Administrationsprotokoller | IPv4, IPv6 |
| Routing-protokoller | IP, VRRP |
| Stativ-montering | Ja |
| Formfaktor | 1U |
| Produktfarve | Sort |
| Knap til nulstilling | Ja |
| Ventilationssystem | Luftstrøm fremad-bagud |
| Antal blæsere | 3 blæser(e) |
| Gennemsnitstid mellem fejl (MTBF) | 196927 t |
| Strømforsyning inkluderet | Ja |
| Redundant strømforsyning | Ja |
| Antal strømforsyninger | 2 |
| Vekselstrømsindgangsspænding | 100 - 240 V |
| Bredde | 441 mm |
| Dybde | 487 mm |
| Højde | 44 mm |
| Vægt | 10,7 kg |
| Harmoniseret systemkode (HS) | 85176990 |
| Strømforsyning | 770 W |
